3.2.4 SSP4 Everhard
This section details the specifications for the Everhard Septic Tank and Lift Well serving Bungalows 65–66, part of Zone 3 of the collection network, designated as SSP4.

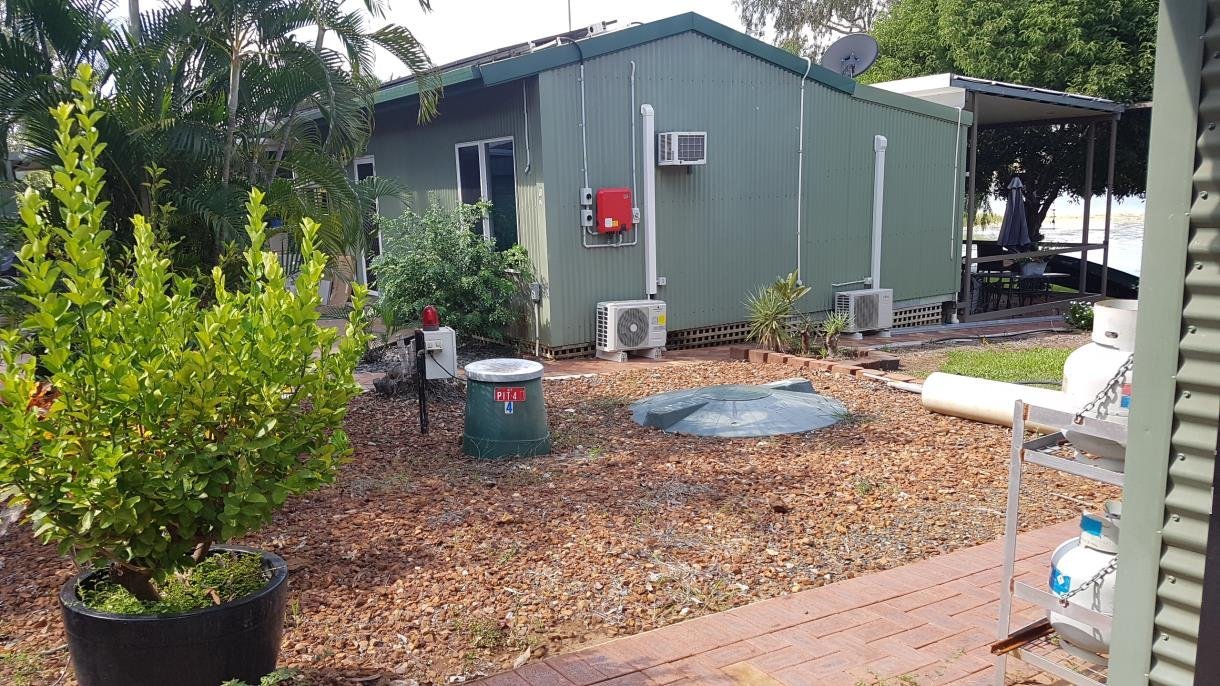

Location and Overview
- Location: Between Bungalows 65 & 66
Septic Tank
Tank Specifications
- Type: Everhard 3,000 Litre plastic septic tank
Tank Condition
Appears of sound structure. XtraTreat septic tank outlet filter installed (was due for cleaning).
Lift Well System
Lift Well Structure
- Type: Polymer tank, approx. 500 Litres
- Modification: Original screw lid removed, compost bin installed as riser (join not sealed)
Access Lid (Lifting Clutch)
Remove the Pit 4 / SSP4 lift-well lid with a lifting clutch that engages the lid’s lifting anchor. Do not lever the lid with improvised tools.
| Item | Detail |
|---|---|
| Open with | Lifting clutch (spherical / “dog bone” anchor type) |
| Use | Lift well lid at SSP4 / Pit 4 |
| Stored | WWTP control room — collect before opening the Pit 4 lift-well lid; return after use |
Stored in WWTP Control Room
The lifting clutch is kept in the wastewater plant control room, with the Gatic lifter and hook lifter.
Pump System
| Item | Detail |
|---|---|
| Model | Pentair Onga VF150 |
| Type | Cast iron vortex submersible drainage pump |
| Applications | Wastewater, rainwater, septic effluent, and grey water (neutral pH) |
| Solids Handling | Up to 15 mm |
| Power | Direct 240 V supply, float activated (refer to manual for exact electrical details) |
| Net Weight | 8.5 kg |
| Installation | 1 unit |
| Manufacturer | Pentair Onga (Australia) |
| Documentation | VF150 Manual |
Ventilation System
- Issue: Required vent not installed on pit
- Alternative: Low-level 100mm vent located ~30m away (connection unconfirmed)
Flow System
Discharge
Pumps to SSP3 via the common 32mm blueline polyethylene.
Current Status
Known Issues
- Performance: Pump fault found on one visit (high water level)
- Alarm System: High water alarm faulty
Replacement of this pit is planned: procurement from late 2026; civil works and cutover may not start until late 2027. See 5.1 SP4 Replacement.
Version Control
| Version | Date | Description |
|---|---|---|
| 1.0 | 2025-10-06 | Initial Release |
| 2.0 | 2026-06-22 | Added Zone 3 collection network reference |
| 2.1 | 2026-08-31 | Linked SP4 replacement (procure late 2026; civil late 2027) |
| 2.2 | 2026-10-21 | Added Show on Map locate buttons |
| 2.3 | 2026-10-26 | Lift-well lid — lifting clutch photo and access note |
| 2.4 | 2026-10-26 | Lifting clutch stored in WWTP control room |
| 2.5 | 2026-10-30 | Hidden search aliases (pit 4 / SPS4 / SSP4) |
Next Review Date: 2027-04-26
